Our Machining Facility

Machine Specification No Of Machines

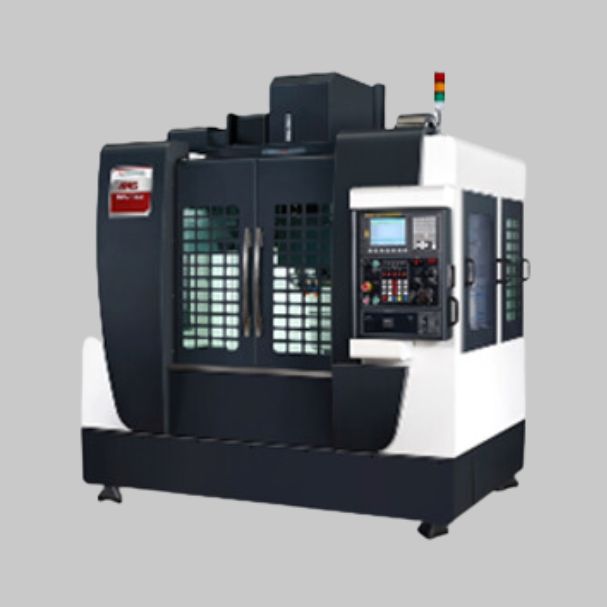

Vertical Machining Center
  1. Make – AMS
  2. Table Size – 1000 X 400 & 800 X 400
  3. 4th Axis attachment
  4. 22 Tool changer
 04
Facilities

MachineSpecificationNo Of Machines
CNC Turning Center

1. Make – AMS
2. Chuck Size – 0165mm
3. CTC Legth – 250mm
4. 8 Tool Changer

5. Tail Stock Attachment

10

Our Conventional Machining Facility

MachineNo of Machines
Conventional Drilling Machines13
Conventional Tapping Machines04
Conventional Lathe Machines02

Ultrasonic Cleaning Machine

Four Stage Ultrasonic Cleaning Machine :-

(1) Pre cleaning → (2) Ultrasonic → Cleaning (3) → Rinsing → (4) Drying

OUR MACHINING FACILITY (VMC)

Our VMC Machine Hour Rate: 450/ Hour :-

ACE Micromatic Systems 540V

ACE Micromatic Systems 850V

SR. NO MODEL SPECIFICATION QTY
1 AMS 850V 1) Make – Ace Micromatic Systems 2)Table Size IN mm – 800 X 400 X 400 3) 4th Axis attachment ( U-CAM Hydraulic ) (Chuck 250) 4) 24 Tool changer 1
2 400 MCV 1) Make – Ace Micromatic Systems 2)Table Size IN mm – 600 X 400 X 600 (With Daylight 125mm) 3) 4th Axis attachment ( U-CAM Hydraulic ) (Chuck 250) 4) 20 Tool changer 1
3 540 V 1) Make – Ace Micromatic Systems 2)Table Size IN mm – 500 X 400 X 400 3) 4th Axis attachment ( U-CAM Hydraulic ) (Chuck 200) 4) 24 Tool changer 1
4 AMS Superwinner 1) Make – Ace Micromatic Systems 2)Table Size IN mm – 600 X 400 X 400 3) 4th Axis attachment ( U-CAM Hydraulic ) (Chuck 200) 4) 20 Tool changer 1
5 MCV 450 1) Make – Ace Micromatic Systems 2)Table Size IN mm – 600 X 400 X 400 3) 4th Axis attachment ( U-CAM Hydraulic ) (Chuck 200) 4) 24 Tool changer 2
6 AMS 850V 1) Make – Ace Micromatic Systems 2)Table Size IN mm – 850 X 520 X 400 3) 4th Axis attachment – Not Available 4) 24 Tool changer 1

OUR MACHINING FACILITY (CNC)

SR. NOMODELSPECIFICATIONQTY
1AMS Jobber Junior1) Make – Ace Micromatic Systems
2) Chuck Size – Ø165 mm
3) CTC Length – 250 mm
4) Turret Tool Capacity – 08 Nos
5) Tail Stock Attachment – Yes (No for one Machine)		5
2ACE Cub1) Make – Ace Micromatic Systems
2) Chuck Size – Ø165 mm
3) CTC Length – 250 mm
4) Turret Tool Capacity – 08 Nos
5) Tail Stock Attachment – Yes		1
3ACE Jobber1) Make – Ace Micromatic Systems
2) Chuck Size – Ø165 mm
3) CTC Length – 250 mm
4) Turret Tool Capacity – 08 Nos
5) Tail Stock Attachment – Yes		1
4Jobber Elite J300LM1) Make – Ace Micromatic Systems
2) Chuck Size – Ø165 mm
3) CTC Length – 300 mm
4) Turret Tool Capacity – 08 Nos
5) Tail Stock Attachment – Yes		2
5Jobber Elite J3001) Make – Ace Micromatic Systems
2) Chuck Size – Ø165 mm
3) CTC Length – 250 mm
4) Turret Tool Capacity – 08 Nos
5) Tail Stock Attachment – Yes		2



Our CNC Machine Hour Rate: 250/ Hour :-

ACE Micromatic J300 LM

ACE Micromatic Jobber Elite

Inspection Facilities

Surface Finish Tester TL – 10mm Output in Ra, Rz, Ry

Dial Comparator for ID, OD, Ovality Inspection LC – 0.001mm

Pressurized Millipore Testing Apparatus Paper Media - 5µ Air Pressure – 10 bar Max

CMM & Count Tracing Facility Available with in Work Premises for 12 X 6

TRIMOS LC – 0.001mm Range – 400 mm

Digital Depth Gauges LC – 0.001mm SL – 12 mm

High Pressure Hot Water Cleaning Machine

Part Cleaning Machine

Media – Water Soap Solution Water Pressure – 17 Bar Max Water Temperature – 40-50°C
